妙用与简价/Brief Introduction：

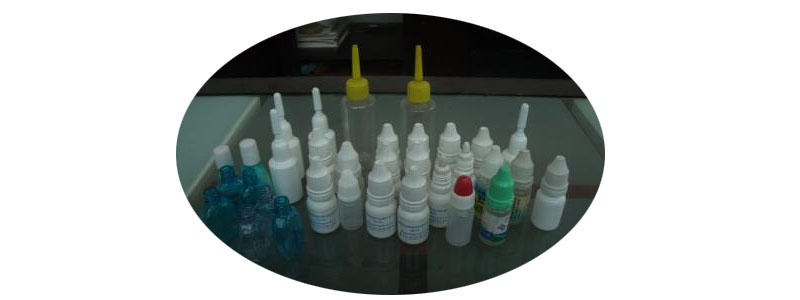

滤油机采中用2-30ML繁多板材的圆管扁形塑胶或有机玻璃罐的眼药液装罐设备、自动化烟油等小残留量装罐设备.滤油机由高高精准度轴承测量范围医疗机构展示 数据测量范围等分盘追踪追踪定位上塞上盖;加快度轴承机械传动装置展示 数据旋盖头的上下;恒发动机功率旋盖;肠蠕动泵记量装罐设备;触模屏的控制.无瓶不装罐设备,没加内塞,外盖.具追踪追踪定位准确,机械传动装置平静,保障小盖,记量准.的操作简略等优势之处。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

特征/Characteristic：

◆微网吧电脑场景人物风格的设定在、装量正确、实际操作便捷。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆设备主机转动速度可展开有级变频柜控速。the mainframe running speed is stepless frequency conversion.◆研发量自主按量管控。the product quantity can be controlled. ◆多种多样出现问题系统提示实用功能(如低汽压。无罐装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆全自动化停止时功能键，对任意轨道交通发现多次无分装、无内塞前提可全自动化停止时。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技艺参数值/Main Technical Parameters：

支持标准Filling Volume	2-30ml
生产的力Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
灌装生产线精准度Filling Precision	≤±1%
主机电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
半自动上塞率Stoppering rate	≥99%
汽源Air Supply	1.3 m3/h    0.4-0.8Mpa
工作效率 Power	2.0 kw
机设备重量Weight	550 kg
外观设计图片尺寸Dimension	1800*1000*1500mm
